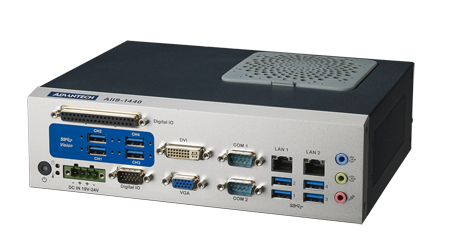

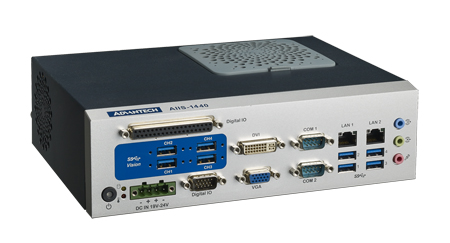

AIIS-1440
USB3 CAM Control System, Supports Intel® Core™ i7/i5/i3 CPU, 4-CH dedicated USB3 controller
Main Features
  • Intel® 3rd/2nd Core™ i7/i5/i3 CPU (LGA1155)
  • 4-CH USB 3.0 with dedicated controller
  • Verified by USB3 Camera
  • Volume less than 3 Liter
  • Internal USB Type-A with lock design (Max. 49mm length)
  • Wall or DIN rail mounting kit (optional)
  • Build in G-sensor for vibration detection
     数据表(PDF)    技术资料下载
  规格表
AIIS-1440-00A1E
Processor System CPU Intel Core i3/i5/i7
Core Number 2002/4/4
Frequency Up to 3.4 GHz
L3 Cache 3 / 6 / 8 MB
Chipset Intel H61
BIOS AMI 64 Mb SPI Flash
Memory Technology Dual Channel DDR3 1066/1333 MHz (Non ECC)
Max. Capacity 16 GB (8 GB per DIMM)
Socket 2 x 204-pin DDR3 SO-DIMM
Graphics Chipset Integrated Integrated Intel HD Graphics
Ethernet Controller LAN1: Intel 82579V LAN2: Intel 82583V
Storage HDD 1 x internal 2.5" HDD Bay
CFast 1
FrontI/O erface USB3.0 4
Rear I/O Interface USB2.0 4
WatchDog Timer Output System Reset
Interval Programmable 1 ~ 255 sec/min
Cooling System Fan 1 (6cm / 27.7 CFM)
Miscellaneous LED Indicators Power, HDD, temperature
Control Power on/off switch
Environment Operational Temperature 0 ~ 45° C
Operating Vibration 1Grms, random, 5~500Hz, 3 axes, 1 hr/axis
Operating Shock 10G, half sine wave, 11 ms duration
Physical Characteristics Dimensions (W x H x D) 232 x 70 x 175 mm (9.06" x 2.76" x 6.89")
Weight 2.5 kg
