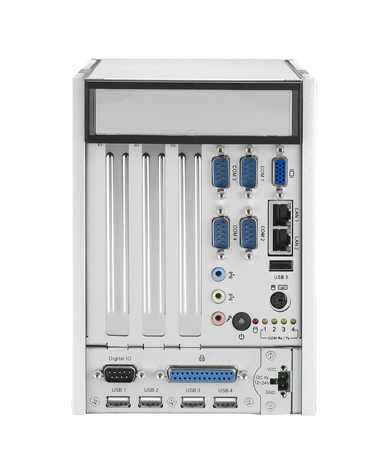

ARK-5260
Intel®Atom™D510无风扇嵌入式工控机,支持双PCI/PCIe扩展和双移动硬盘
Main Features
  • 密封结构,无风扇系统,支持Intel®Atom™D510 1.66GHz
  • 支持2×Giga LAN和5×USB 2.0
  • 支持4×RS-232/422/485带自动流量控制
  • 内置1×PCIe扩展槽和2×PCI扩展槽
  • 防震橡胶垫帮助稳固PC扩展卡
  • 支持12~24V直流宽压输入
  • 支持SUSIAccess和嵌入式软件APIs
  • 符合IP40防护等级
     数据表(PDF)    技术资料下载
  规格表

ARK-5260F-D5A1E

Memory

Technology

Single channel DDR2 667 MHz

Max. Capacity

2 GB SODIMM

Socket

1 x 200-pin SODIMM

Storage

SSD

Supports one internal CompactFlash socket for type I/II CompactFlash disk

HDD

Supports two drive bays space for SATA 2.5" HDD

Ethernet

LAN1

10/100/1000 Mbps GigaLAN Controller, Supports Wake On LAN

LAN2

10/100/1000 Mbps GigaLAN Controller, Supports Wake On LAN

Graphics

VRAM

Shared 224 MB

Chipset

Embedded Gen3.5+ GFX Core technology, Direct X 9/Pixel Shader 2.0 compliant

Interface

VGA: Supports up to 2048 x 1536 @ 60 Hz

Audio

Interface

Line-in, Line-out, Mic-in

I/O

Serial port

4 x RS-232/422/485 port, support auto-flow control

USB

5 x USB ports, Compliant with USB 2.0

Keypad

1 x PS/2 port, supports PS/2 mouse and keyboard

Watchdog timer

255 levels timer interval, setup by software

Parallel

Supports D-sub 25-pin connector

Digital I/O

Support 8-bit digital IO

Environment

Temperature (Operating)

With extend temperature peripherals 2.5-inch HDD without PC expansion Boards: 0 ~ 45° C / With extend temperature peripherals CompactFlash disk without PC expansion Boards: -20 ~ 55° C

Temperature (Storage)

- 40 ~ 85° C (-40 ~185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration Loading During Operation

With 2.5-inch HDD: 1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis / With Compact Flash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis

Safety Certifications

CE/FCC, CCC, BSMI / CCC, BSMI

Processor

CPU

Intel® Atom™ D510 processor

Max Speed

1.66GHz

BIOS

AMI 16Mb SPI Flash

Chipset

ICH8M

Power Requirement

Power Type

AT/ATX

Power Input Votage

12 VDC ~ 24 VDC

Minimum Power Input

12 V @ 5 A ~ 24 V @ 2.5 A

Power Adapter

AC-to-DC, 65 W DC19 V/3.4 A

Expansion

PCI/PCIe Slot

2 PCI Slot, and 1 PCIe Slot / Supports maximun 15W power for expansion / Supports maximum dimension of 99 mm (width) x 186 mm (length) for expansion PC board

Software Development Kit

Operating System

Win 7, XP Embedded, WinCE 6.0

Linux

Fedora 12

Power Consumption

Typical

20W

Max.

23W

Mechanical

Construction

Aluminum housing

Mounting

Desk/wall-mounting

Dimensions

137 x 189 x 221 mm (5.39" x 7.44" x 8.70")

Weight

4.2 kg (9.24 lbs)
