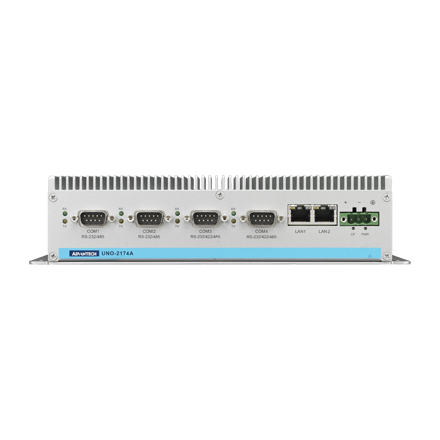

嵌入式工控机UNO-2174
Intel® Atom™ D510 嵌入式无风扇工业电脑, 6 x USB, 4 x COM, 2 x Mini PCIe

Main Features

  • 板载Intel® Atom TM D510 1.67GHz 处理器
  • 2个10/100/1000 Base-T RJ-45 端口,6个USB2.0端口
  • Windows® CE 6.0, Windows WES 2009, Linux,即用解决方案
  • 内建系统状态LED灯指示
  • 前接入CF插槽
  • 支持局域网功能启动
  • 2个微型PCIe插槽,支持1个SIM卡槽
  • 无风扇设计,免除内部接线
  • 机壳与电源地隔离
  • 支持宽温操作:-10-70°C)
  • IP40 入口保护
  • 支持64位,Windows 7 32
  • 支持插件卡(1个PCI-104和1个PC/104+),支持子板扩展
  • 支持任何波特率
       数据表(PDF)    技术资料下载
  规格表

UNO-2174A-A23E
UNO-2174A-A33E
General Mounting DIN-rail, Wallmount, VESA DIN-rail, Wallmount, VESA
Power Consumption 12 W 12 W
Certifications Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI
Weight 2.5 kg 2.5 kg
Dimensions 255 x 152 x 50 mm(10" x 6.0" x 2.0") 255 x 152 x 59 mm (10" x 6.0" x 2.3")
Enclosure Aluminum +SECC Aluminum +SECC
OS Support Windows XP/7, WES7, WES-2009, CE 6.0, Linux, QNX Windows XP/7, WES7, WES-2009, CE 6.0, Linux, QNX
Power Requirement 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX 9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
System Design Fanless design with no internal cabling Fanless design with no internal cabling
Remote Management Built-in Advantech DiagAnywhere agent on Windows CE, WES2009, WES7 Built-in Advantech DiagAnywhere agent on Windows CE, WES2009, WES7
System Hardware CPU Intel Atom N450 1.6 GHz Intel Atom D510 1.66 GHz
Memory 2 GB DDR2 SDRAM built-in 2 GB DDR2 SDRAM built-in
Storage CF: 1 x front-accessilbe type I/II CompactFlash® slot HDD: Build-in one 2.5" SATA HDD bracket CF: 1 x front-accessilbe type I/II CompactFlash® slot HDD: Build-in one 2.5" SATA HDD bracket
Keyboard/Mouse Ports 1 x PS/2 1 x PS/2
Audio Line in, Line out, Mic in (5.1 channel HD audio) Line in, Line out, Mic in (5.1 channel HD audio)
Display DB15 VGA connector, UNO-2174A supports up to 1400 x 1050, UNO-2178A supports up to 2048 x 1536 DB15 VGA connector, UNO-2174A supports up to 1400 x 1050, UNO-2178A supports up to 2048 x 1536
Indicators LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)
Mini PCIe Expansion 2 x Mini PCIe slots with 1 x SIM card 2 x Mini PCIe slots with 1 x SIM card
I/O Interface Serial Ports 2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO 2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO
LAN 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) 2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)
USB 6 x USB 2.0 6 x USB 2.0
Environment Humidity 95% @ 40°C (non-condensing) 95% @ 40°C (non-condensing)
Humidity (Operating) 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing)
Ingress Protection IP40 IP40
