ACP-4000BP-00CE
|
ACP-4000BP-30CE
|
ACP-4000MB-00CE
|
ACP-4000MB-30CE
|
|
Disk Drive Bay
|
3.5" Front-Accessible
|
1
|
1
|
1
|
1
|
|
Drive Bay
|
5.25"
|
3
|
3
|
3
|
3
|
|
Cooling
|
System Fan
|
2 (12 cm / 85 CFM each)
|
2 (12 cm / 85 CFM each)
|
2 (12 cm / 85 CFM each)
|
2 (12 cm / 85 CFM each)
|
|
Air Filter
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Rear I/O Interface
|
USB2.0
|
2
|
2
|
2
|
2
|
|
Front I/O Interface
|
PS/2
|
1
|
1
|
1
|
1
|
|
Miscellaneous
|
LED Indicators
|
Power, HDD, Temperature, FAN, and Power voltage Status
|
Power, HDD, Temperature, FAN, and Power voltage Status
|
Power, HDD, Temperature, FAN, and Power voltage Status
|
Power, HDD, Temperature, FAN, and Power voltage Status
|
|

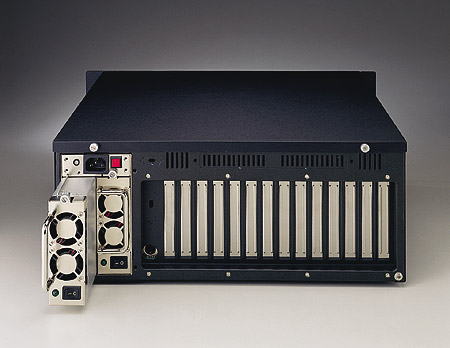

Rear Panel
|
One 9-pin D-Sub opening
|
One 9-pin D-Sub opening
|
Five 9-pin D-Sub & one 68-pin SCSI openings
|
Five 9-pin D-Sub & one 68-pin SCSI openings
|
|
Intelligent System Module
|
Remote Monitoring
|
CPU/System fan speed , CPU/System temperature , motherboard voltage
|
CPU/System fan speed , CPU/System temperature , motherboard voltage
|
CPU/System fan speed , CPU/System temperature , motherboard voltage
|
CPU/System fan speed , CPU/System temperature , motherboard voltage
|
|
Environment
|
Operational Temperature
|
0 ~ 40° C (32 ~ 104° F)
|
0 ~ 40° C (32 ~ 104° F)
|
0 ~ 40° C (32 ~ 104° F)
|
0 ~ 40° C (32 ~ 104° F)
|
|
Non-Operational Temperature
|
-20 ~ 60° C (-4 ~ 140° F)
|
-20 ~ 60° C (-4 ~ 140° F)
|
-20 ~ 60° C (-4 ~ 140° F)
|
-20 ~ 60° C (-4 ~ 140° F)
|
|
Operating Humidity
|
10 ~ 85% @ 40° C, non-condensing
|
10 ~ 85% @ 40° C, non-condensing
|
10 ~ 85% @ 40° C, non-condensing
|
10 ~ 85% @ 40° C, non-condensing
|
|
Non-Operating Humidity
|
10 ~ 95% @ 40° C, non-condensing
|
10 ~ 95% @ 40° C, non-condensing
|
10 ~ 95% @ 40° C, non-condensing
|
10 ~ 95% @ 40° C, non-condensing
|
|
Operating Vibration
|
1 Grms
|
1 Grms
|
1 Grms
|
1 Grms
|
|
Non-Operating Vibration
|
2 G
|
2 G
|
2 G
|
2 Grms
|
|
Operating Shock
|
10 G (with 11 ms duration, half sine wave)
|
10 G (with 11 ms duration, half sine wave)
|
10 G (with 11 ms duration, half sine wave)
|
10 G (with 11 ms duration, half sine wave)
|
|
Non-Operating Shock
|
30 G
|
30 G
|
30 G
|
30 G
|
|
Physical Characteristics
|
Dimensions (W x H x D)
|
482 x 88 x 451 mm (19'' x 3.5'' x 17.8'')
|
482 x 88 x 451 mm (19'' x 3.5'' x 17.8'')
|
482 x 88 x 451 mm (19'' x 3.5'' x 17.8'')
|
482 x 177 x 479 mm (19" x 7" x 18.9")
|
|
Weight
|
11.5 kg (25.3 lb)
|
11.5 kg (25.3 lb)
|
11.5 kg (25.3 lb)
|
11.5 kg (25.3 lb)
|
