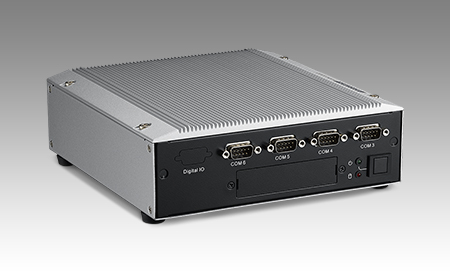

| ARK-6322-Q0A1E |
| Environment |
Operating Temperature |
With 3.5-inch hard disk 0 ~ 40° C (32 ~ 104° F) with 0.7 m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7 m/s air flow |
| Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F) |
| Expansion |
Mini PCIe #2 |
1 x Half-size Mini PCIe, supports WLAN module |
| Other |
Digital IO |
8-bit programmable (Reserved) |
| Watchdog Timer |
255 levels timer interval, setup by software |
| Power Requirement |
Power Adapter |
AC to DC, DC12V / 5A, 60W (Optional) |
| Power Input Votage |
12 VDC, ± 10% |
| Power Type |
ATX mode |
| Processor |
CPU |
Intel Celeron Processor J1900 Quad Core |
| Max Speed |
2.0 GHz, Turbo Boost up to 2.41GHz |
| L2 Cache |
2 MB |
| BIOS |
AMI 16 Mbit SPI |
| Memory |
Technology |
Dual channel DDR3L 1333MHz SDRAM |
| Max. Capacity |
8 GB, 4 GB per SO-DIMM |
| Socket |
2 x 204-pin SO-DIMM |
| Graphics |
Controller |
Intel Gen 7 Graphics Engines and media encode/decode engine; GPU Frequency: 688 MHz |
| VRAM |
Shared system memory up to 224 MB SDRAM |
| VGA |
Supports up to 2560 x 1600 |
| Display port |
Supports resolution up to 2560 x 1600 |
| Dual Display |
VGA+DP |
| Ethernet |
LAN1 |
10/100/1000 Mbps RTL8111E GbE |
| LAN2 |
10/100/1000 Mbps RTL8111E GbE |
| Audio |
Interface |
Realtek ALC892, High Definition Audio, Line-out, Mic-in |
| I/O Interface |
Serial Port |
5 x RS-232 ports, 1 x RS-232/422/485 with auto flow control (COM3) |
| USB |
1 x USB 3.0 port and 7 x USB 2.0 ports |
| Expansion |
Mini PCIe #1 |
1 x Full-size Mini PCIe, support mSATA storage or WWAN module |
| Storage |
HDD |
1 x SATA HDD Bay for 2.5" or 3.5" device with maximum height 26.1mm |
| Solid State Disk |
1 x mSATA share with mini-PCIe slot |
| Software Support |
Microsoft Windows |
Windows 8 , Windows 7, WES8, WES7 |
| Linux |
Support (by Project) |
| Power Consumption |
Typical |
15.7 W |
| Maximum |
24.7 W |
| Mechanical |
Construction |
Aluminum housing |
| Mounting |
Wall mounting kit (optional), VESA mounting kit (optional) |
| Dimensions |
200 x 64 x 200 mm |
| Weight |
2.0 kg |
| Environment |
Relative Humidity |
95% @ 40° C (non-condensing) |
| Vibration during Operation |
With HDD: 0.5 Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis |
| Shock During Operation |
With HDD: 10 G, IEC 60068-2-27, half sine, 11 ms duration |
| EMC |
CE/FCC Class A, CCC, BSMI |
| Safety Certifications |
CB, UL, CCC, BSMI |
