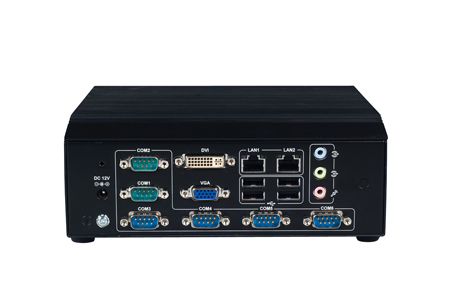

| ARK-6320-6M02E |
| Processor |
CPU |
Intel Atom Processor D525 1.8 GHz |
| CPU TDP |
13W |
| Frequency |
1.8GHz |
| Core Number |
2 |
| L2 Cache |
1MB |
| BIOS |
AMI 16 Mbit SPI |
| Chipset |
ICH8M |
| Memory |
Technology |
Single Channel DDR3 800MHz |
| Max. Capacity |
4 GB |
| ECC Support |
No |
| Socket |
2 x 204-pin SODIMM |
| Display |
Controller |
Embedded Gen3.5 + GFX Core |
| Graphic Memory |
Shared system memory up to 224 MB SDRAM |
| VGA |
Supports up to SXGA 2046 x 1536 @ 60Hz |
| LCD (TTL/LVDS/eDP) |
LVDS : Single channel 18-bit and up to WXGA 1366 x 768 (Optional) |
| DDI (HDMI/DVI/DisplayPort) |
DVI : 1600 x 1200 |
| Multiple Display |
Dual |
| Ethernet |
Controller |
GbE LAN1: Intel 82567V; GbE LAN2: Intel 82583V |
| Speed |
10/100/1000 Mbps |
| Connector |
2 x RJ-45 connectors |
| Audio |
Audio Interface |
HD Audio |
| CODEC |
Realtek ALC892, High Definition Audio (HD) |
| Connector |
3 (Mic-in, Line-in, Line-out) |
| Watchdog Timer |
WatchDog Timer |
Yes |
| Storage |
SATA |
1 x SATA |
| CompactFlash |
1 x type I/II socket (on the solder side of the motherboard) |
| I/O |
USB2.0 |
8 |
| COM Port |
5 x RS232, 1 x RS232/ 422/ 485 |
| Power |
Power Type |
ATX |
| Power Consumption (Idle) |
23W |
| Power Consumption (Full Load) |
37W |
| Power Adaptor |
AC to DC, DC12V/5A, 60 W (Optional) |
| Environment |
Operational Temperature |
0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature |
-40~ 85° C |
| Vibration Resistance |
0.5 Grm |
| Shock Protection |
20G |
| Physical |
Dimension (mm) |
200 x 73 x 200 mm (7.9" x 2.9" x 7.9") |
| Weight |
4.14 kg (8.8 lb) |
| Construction |
Aluminum with fanless design |
| Mounting |
Desk (Optional) |
| Operating System |
Microsoft Windows |
Yes |
| Linux |
Yes |
| SUSIAccess |
Yes |
| iManager |
Yes |
| Certification |
EMC |
CE/FCC/CCC/BSMI |
| Safety Certifications |
CCC/BSMI |
