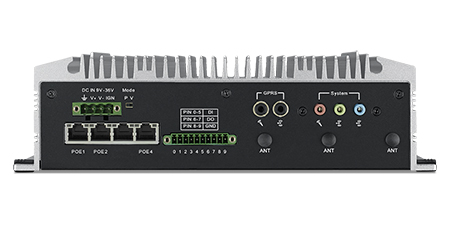

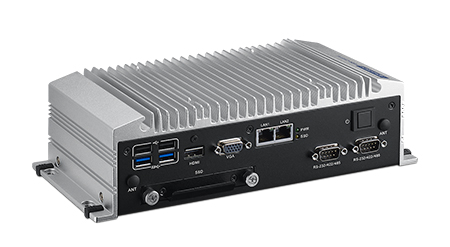

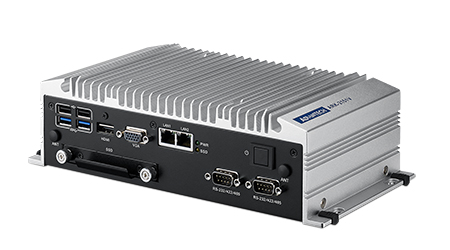

ARK-2151V
第四代Intel® Core i5 4300U / Celeron 2980U SoC ,车载全高清NVR带4xPoE接口无风扇嵌入式工控机
Main Features
  • ƒIntel® Celeron 2980U 1.6GHz / Core i5-4300U 1.9 GHz SoC
  • 4 PoE Ports to Support Mainstream IP Cameras
  • Diversity Communication Abilities, ex. WWAN, WLAN
  • Built-in GPS and G-Sensor for GIS application
  • Intelligent Vehicle Power Ignition
  • 9 ~ 36 VDC Wide Power Input w/isolation
  • 1x Hot-swappable 2.5" drive bay
  • Supports iManager, SUSIAccess and Embedded Software APIs
     数据表(PDF)    技术资料下载
  规格表

ARK-2151V-S6A1E
ARK-2151V-S9A1E
Processor CPU Intel Celeron 2980U Dual Core Intel i5-4300U Dual Core
Frequency 1.6 GHz 1.9 GHz
L3 Cache 2 MB 3 MB
BIOS AMI EFI 128Mbit AMI EFI 128Mbit
Memory Technology DDR3L 1333 MHz DDR3L 1600 MHz
Max. Capacity 8 GB 8 GB
Socket 1 x 204-pin SO-DIMM 1 x 204-pin SO-DIMM
Graphics Chipset HD Graphics GT2-4400 Graphics
Graphic Engine DirectX11.1, OpenGL 4.0, and OpenCL 1.2,Full AVC/VC1/MPEG2 HW Decode DirectX11.1, OpenGL 4.0, and OpenCL 1.2,Full AVC/VC1/MPEG2 HW Decode
VGA Up to 1920 x 1200 with 60 Hz, 154 MHz pixel clock rate Up to 1920 x 1200 with 60 Hz, 154 MHz pixel clock rate
HDMI Lockable HDMI connector, up to 4096 x 2304 at 24 Hz Lockable HDMI connector, up to 4096 x 2304 at 24 Hz
Audio Main System Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in
Cellular Voice Support WWAN voice function, Line-out, Mic-in Support WWAN voice function, Line-out, Mic-in
Ethernet LAN1 10/100/1000 Mbps Intel I218 GbE, support Wake on LAN 10/100/1000 Mbps Intel I218 GbE, support Wake on LAN
LAN2 10/100/1000 Mbps Intel I210-IT, support Wake on LAN 10/100/1000 Mbps Intel I210-IT, support Wake on LAN
I/O Interface Power over Ethernet, PoE N/A 4 x 10/100 Mbps - 4ports full-load, IEEE802.3af Class 2 (7Watt) - 2ports full-load, IEEE802.3af Class 3 (15.4Watt)
Serial Port 2 x RS-232/422/485 ports w/ 3KV isolation (support auto flow control, jumper selectable) N/A
Optional COM or CANBus 2 x DB9 connectors for RS-232/422/485 signal (Default) or CANBus 2.0A/B (Module option) 2 x DB9 connectors for RS-232/422/485 signal (Default) or CANBus 2.0A/B (Module option)
USB Interface 2 x USB 2.0 & 2 x USB3.0 2 x USB 2.0 & 2 x USB3.0
GPIO 6 x DI & 2 x DO w/ 3KV isolation Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel On-state Voltage: 24 VDC nominal, open collector to 30 VDC 6 x DI & 2 x DO w/ 3KV isolation Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel On-state Voltage: 24 VDC nominal, open collector to 30 VDC
Other GPS On board standalone GPS, support GPS, GLONASS, GALILEO and QZSS signals On board standalone GPS, support GPS, GLONASS, GALILEO and QZSS signals
G-Sensor On board high resolution G-Sensor, up to 13-bit resolution at ± 16g On board high resolution G-Sensor, up to 13-bit resolution at ± 16g
Watchdog Timer 255 levels timer interval, setup by software 255 levels timer interval, setup by software
Expansion Mini PCIe #1 Full-size Mini PCIe, support mSATA Full-size Mini PCIe, support mSATA
Mini PCIe #2 Half-size Mini PCIe, support WLAN module Half-size Mini PCIe, support WLAN module
Mini PCIe #3/4 2x Full-size Mini PCIe w/SIM holders, support WWAN module 2x Full-size Mini PCIe w/SIM holders, support WWAN module
Storage 2.5" Drive Bay 1x Hot-swappable 2.5" drive bay (Max 9.5mm height) 1x Hot-swappable 2.5" drive bay (Max 9.5mm height)
mSATA Laverage MiniPCIe #1 slot Laverage MiniPCIe #1 slot
Software Support Microsoft Windows WES8, WES7, Windows 8, Windows 7 WES8, WES7, Windows 8, Windows 7
Linux Support by project Support by project
Power Requirement Power Type AT/ATX AT/ATX
Power Input Votage 9 ~ 36 VDC w/isolation 9 ~ 36 VDC w/isolation
Vehicle Power Ignition Selectable boot-up & shut-down voltage, on/off delay time Selectable boot-up & shut-down voltage, on/off delay time
Isolation 1.5KV Isolated 1.5KV Isolated
Mechanical Construction Aluminum housing, Silver Aluminum housing, Silver
Mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions 264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24") 264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")
Environment Operating Temperature With extended temperature peripherals: -30~70° C with 0.7m/s air flow With standard temperature peripherals: 0 ~ 45° C with 0.7m/s air flow With extended temperature peripherals:-20 ~ 60° C with 0.7m/s air flow,With standard temperature peripherals:0 ~ 45° C with 0.7m/s air flow
Storage Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing)
Vibration/Shock With mSATA/SSD: IEC 60721-3-5 Class 5M3 With mSATA/SSD: IEC 60721-3-5 Class 5M3
Regulation EMC CE/FCC Class A, CCC, BSMI CE/FCC Class A, CCC, BSMI
Safety UL, CCC, BSMI, E-Mark (E13) UL, CCC, BSMI, E-Mark (E13)
In-Vehicle Power ISO7637-2 Lev.4 ISO7637-2 Lev.4
