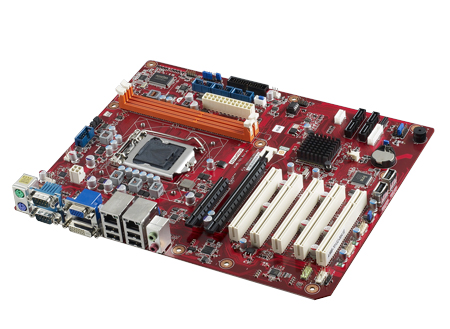

AIMB-701VG-00A1E |
| Form Factor |
Form Factor |
ATX |
ATX |
| Processor System |
CPU |
Intel Core i3/i5/i7 (LGA1155) |
Intel Core i3/i5/i7 (LGA1155) |
| Frequency |
Up to 3.4 GHz |
Up to 3.4 GHz |
| L2 Cache |
- |
- |
| L3 Cache |
8MB/6MB/3MB |
8MB/6MB/3MB |
| BIOS |
AMI EFI 64 Mbit |
AMI EFI 64 Mbit |
| Chipset |
Intel H61 |
Intel H61 |
| Integrated Graphics |
Yes |
Yes |
| FSB |
- |
- |
| Memory |
Technology |
DDR3 1600 MHz |
DDR3 1600 MHz |
| Capacity |
Up to 16 GB (8 GB per DIMM) |
Up to 16 GB (8 GB per DIMM) |
| ECC Support |
- |
- |
| Socket |
2 x 240-pin UDIMM |
2 x 240-pin UDIMM |
| Display |
Controller |
Intel HQ Graphics Integrated |
Intel HQ Graphics Integrated |
| Graphic Memory |
Share system memory up to 1 GB with 2 GB and above memory installed |
Share system memory up to 1 GB with 2 GB and above memory installed |
| Multiple Display |
Dual |
- |
| Display Interface |
VGA: Up to 2048 x 1536 DVI-D: Up to 1920 x 2000 |
VGA: Up to 2048 x 1536 |
| Expansion Interface |
PCI Express x 16 |
1 |
1 |
| PCI Express x 4 |
- |
1 |
| PCI Express x 1 |
1 |
- |
| PCI |
5 |
5 |
| LPC |
1 |
1 |
| Ethernet |
Controller |
LAN1: Intel 82579V LAN2: Intel 82583V |
LAN1: Intel 82579V |
| Speed |
10/100/1000 Base-T |
10/100/1000 Base-T |
| Connector |
2 x RJ45 |
1 x RJ45 |
| WatchDog Timer |
Output |
System Reset |
System Reset |
| Interval |
Programmable 1~255 sec |
Programmable 1~255 sec |
| I/O |
SATA |
4 x SATA II |
4 x SATA II |
| USB3.0 |
0 |
0 |
| USB2.0 |
6 |
6 |
| GPIO |
8-bit |
8-bit |
| LPT |
1 |
1 |
| COM Port |
4 (3 x RS232, 1 x RS232/422/485) |
- |
| PS/2 Keyboard/Mouse |
1 |
1 |
| SPDIF |
1 |
1 |
| System Fan |
2 |
2 |
| Rear I/O Interface |
Display |
2 |
1 |
| USB3.0 |
- |
- |
| USB2.0 |
4 |
4 |
| COM |
2 (2 x RS232) |
2 (2 x RS232) |
| PS/2 |
2(1 x keyboard and 1 x mouse) |
2(1 x keyboard and 1 x mouse) |
| Audio |
2 (Mic-in, Line-out) |
2 (Mic-in, Line-out) |
| LPT |
- |
- |
| DVI |
1 |
- |
| Ethernet |
2 |
1 |
| VGA |
1 |
1 |
| Physical Characteristics |
Dimensions (LxW) |
304.8 x 244 mm (12" x 9.6") |
304.8 x 244 mm (12" x 9.6") |
| Certification |
EMC |
CE, FCC |
CE, FCC |
| Management Solution |
Software |
SUSIAccess |
SUSIAccess |
