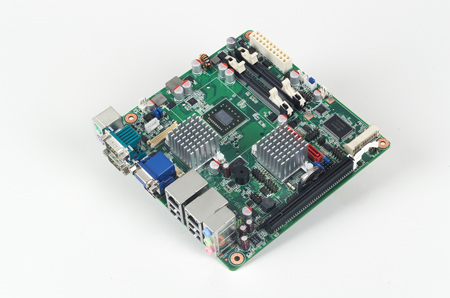

AIMB-222G2-S2A1E |
AIMB-222G2-S2A1E |
| Processor |
SOC (28mn) |
AMB Quad Core GX-424CC |
AMB Quad Core GX-424CC |
| Max Speed |
1.2GHz |
1.2GHz |
| L2 Cache |
2 MB |
2 MB |
| BIOS |
AMI EFI 16Mbit |
AMI EFI 16Mbit |
| Memory |
Technology |
DDR3 1066MHz |
DDR3 1066MHz |
| Max. Capacity |
4 GB |
4 GB |
| Socket |
2 x 204-pin SODIMM |
2 x 204-pin SODIMM |
| Display |
Controller |
ATI Radeon™ HD4200 serial |
ATI Radeon™ HD4200 serial |
| Graphic Engine |
DirectX10, OpenGL 2.0, H.264 and VC1 support |
DirectX10, OpenGL 2.0, H.264 and VC1 support |
| Graphic Memory |
Share with system memory up to 128 MB |
Share with system memory up to 128 MB |
| VGA |
up to 2560 x 1536 @ 32bpp |
up to 2560 x 1536 @ 32bpp |
| Memory |
Onboard Memory |
|
1 GB |
| Display |
LCD (TTL/LVDS/eDP) |
LVDS: dual channel 24-bit up to 1920 x 1200 |
LVDS: dual channel 24-bit up to 1920 x 1200 |
| DDI (HDMI/DVI/DisplayPort) |
1920 x 1200 @ 60 MHz |
1920 x 1200 @ 60 MHz |
| Multiple Display |
Dual |
Dual |
| Expansion |
PCI Express x 8 |
1 |
1 |
| Slot Type |
1 |
1 |
| Ethernet |
Controller |
GbE1: RTL8111DL, GbE2: RTL8111DL |
GbE LAN1: RTL8111DL, GbE LAN2: RTL8111DL |
| Speed |
10/ 100/ 1000 Mbps |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 2 |
RJ45 x 2 |
| Audio |
Audio Interface |
HD Audio |
HD Audio |
| CODEC |
Realtek ALC892, High Definition Audio (HD) |
Realtek ALC892, High Definition Audio (HD) |
| Connector |
3 (Line-in, Line out, Mic-in) |
3 (Line-in, Line out, Mic-in) |
| Watchdog Timer |
WatchDog Timer |
Yes |
Yes |
| Storage |
SATA |
2 x SATA II (Max. Data Transfer Rate 300 MB/s) |
2 x SATA II (Max. Data Transfer Rate 300 MB/s) |
| CompactFlash |
CompactFlash Type I/II |
CompactFlash Type I/II |
| I/O |
USB2.0 |
8 |
8 |
| GPIO |
1 |
1 |
| COM Port |
2 (RS-232, 5V / 12V by jumper selection) |
2 (RS-232, 5V / 12V by jumper selection) |
| Keypad |
2 |
2 |
| Power |
Power Type |
ATX, AT |
ATX, AT |
| Connector |
ATX20P |
ATX20P |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) |
0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature |
-40~ 85° C |
-40~ 85° C |
| Vibration Resistance |
3.5 Grms (non OP) |
3.5 Grms (non OP) |
| Physical |
Dimension (mm) |
170x 170 mm (without heatsink) |
170x 170 mm (without heatsink) |
| Weight |
1.04 kg (1.72 lb), weight of total package |
1.04 kg (1.72 lb), weight of total package |
| Construction |
with CPU cooler design |
with CPU cooler design |
| Operating System |
Microsoft Windows |
Yes |
Yes |
| Linux |
Yes |
Yes |
| SUSIAccess |
Yes |
Yes |
| Certification |
EMC |
CE, FCC |
CE, FCC |
