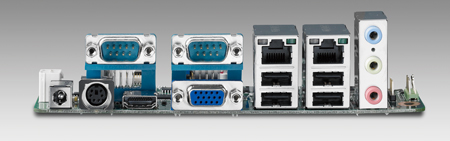

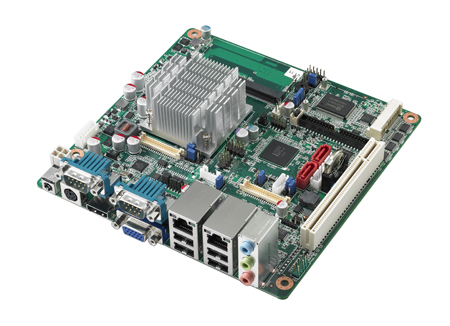

AIMB-214E-S6A2E |
AIMB-214U-S6A2E |
| Display |
Video Interface |
VGA+LVDS, VGA+HDMI, VGA+eDP |
VGA+LVDS, VGA+HDMI, VGA+eDP |
| Expansion |
Slots |
PCI, Mini-PCIe |
PCI, Mini-PCIe |
| Processor |
CPU |
Intel Atom D2550 |
Intel Atom N2600 |
| Max Speed |
1.86GHz |
1.6 GHz onboard |
| L2 Cache |
1 MB |
1MB |
| Chipset |
Intel NM10 |
Intel NM10 |
| Form Factor |
Form Factor |
Mini-ITX |
Mini-ITX |
| Processor |
CPU TDP |
10W |
3.5 W |
| Frequency |
1.86 GHz |
1.6 GHz |
| Core Number |
2 |
2 |
| BIOS |
AMI EFI 16 Mbit |
AMI EFI 16 Mbit |
| Memory |
Technology |
DDR3 1066MHz |
DDR3 1066MHz |
| Max. Capacity |
4GB |
4GB |
| Socket |
1 x 204-pin SODIMM |
1 x 204-pin SODIMM |
| Display |
Controller |
Intel Atom D2550 Integrated |
Intel Atom N2600 Integrated |
| Graphic Memory |
Shared system memory up to 224 MB SDRAM |
Shared system memory up to 224 MB SDRAM |
| LCD (TTL/LVDS/eDP) |
LVDS1 Support 24-bit dual channel LVDS2 Support 24-bit single channel |
LVDS1 Support 24-bit dual channel LVDS2 Support 24-bit single channel |
| VGA |
up to SXGA 1920 x 1200 |
up to SXGA 1920 x 1200 |
| DDI (HDMI/DVI/DisplayPort) |
HDMI : 1920 x 1200 @ 60 MHz |
HDMI : 1920 x 1200 @ 60 MHz |
| Multiple Display |
Dual |
Dual |
| Expansion |
Slot Type |
1 |
1 |
| PCI |
1 |
1 |
| Ethernet |
Controller |
GbE1: Intel 82574L/82583V co-lay GbE2: Intel 82583V |
GbE1: Intel 82574L/82583V co-lay GbE2: Intel 82583V |
| Speed |
10/ 100/ 1000 Mbps |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 2 |
RJ45 x 2 |
| Audio |
Audio Interface |
HD Audio |
HD Audio |
| CODEC |
Realtek ALC892, High Definition Audio (HD) |
Realtek ALC892, High Definition Audio (HD) |
| Connector |
3 (Line-in, Line out, Mic-in) |
3 (Line-in, Line out, Mic-in) |
| Watchdog Timer |
WatchDog Timer |
Yes |
Yes |
| Storage |
SATA |
3 x SATA II (Max. Data Transfer Rate 300 MB/s) |
3 x SATA II (Max. Data Transfer Rate 300 MB/s) |
| mSATA |
mini PCIe switch mSATA |
mini PCIe switch mSATA |
| CFast |
1 |
1 |
| I/O |
USB2.0 |
6 |
6 |
| GPIO |
1 |
1 |
| COM Port |
2 ( 1 x RS232, 1 x RS232/ 422/ 485) |
2 (1 x RS232, 1 x RS232/ 422/ 485) |
| Keypad |
2 |
2 |
| Power |
Power Type |
ATX,AT |
ATX,AT |
| Connector |
DC in, ATX |
DC in, ATX |
| Power Adaptor |
Yes |
Yes |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) |
0 ~ 60° C (32 ~ 140° F) |
| Non-Operational Temperature |
-40~ 85° C |
-40~ 85° C |
| Vibration Resistance |
3.5 Grms (non OP) |
3.5 Grms (non OP) |
| Physical |
Dimension (mm) |
170x 170 mm (without heatsink) |
170x 170 mm (without heatsink) |
| Weight |
1.04 kg (1.72 lb), weight of total package |
1.04 kg (1.72 lb), weight of total package |
| Construction |
with CPU cooler desing |
with fanless design |
| Operating System |
Microsoft Windows |
Yes |
Yes |
| Linux |
Yes |
Yes |
| SUSIAccess |
Yes |
Yes |
| Certification |
EMC |
CE, FCC |
CE, FCC
|
