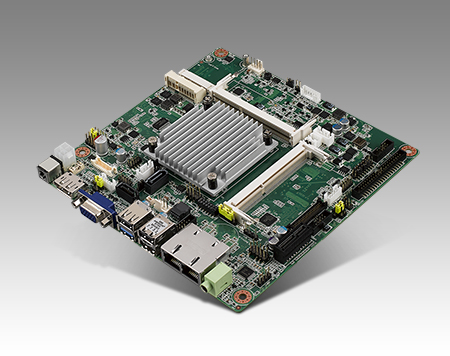

AIMB-215 B1
Intel® Celeron® Quad Core J1900/N2930/N2807 Mini-ITX with CRT/LVDS/DP++,6 COM, and Dual LAN
Main Features
  • Supports Intel Celeron Quad Core J1900/N2930/N2807 processor
  • Two 204-pin SO-DIMM up to 8 GB DDR3L 1333 MHz SDRAM
  • Supports VGA/DP1.2 /24-bit dual channel LVDS
  • Supports 1 PCIE x1 and 2 mini-PCIE expansion slot, 6 COMs, 7 USB 2.0, and 1 USB 3.0
  • Lower total cost of ownership with DC12V support and onboard TPM1.2(optional)
  • Supports SUSIAccess and Embedded Software APIs
     数据表(PDF)    技术资料下载
  规格表
　 　 AIMB-215D-S6B1E AIMB-215L-S6B1E AIMB-215N-S6B1E AIMB-215U-S6B1E
Processor CPU J1900 J1900 N2930 N2807
Display VGA Up to 2560 x 1600 Up to 2560 x 1600 Up to 2560 x 1600 Up to 2560 x 1600
Multiple Display Dual Dual Dual Dual
Ethernet Controller GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E GbE LAN1: Realtek RTL8111E GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E GbE LAN1: Realtek RTL8111E
Audio CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD)
I/O COM Port (5 x RS232,1 x RS232/ 422/ 485) 2 x RS232 (5 x RS232,1 x RS232/ 422/ 485) 2 (RS-232)
Display LCD (TTL/LVDS/eDP) LVDS: dual channel 24-bit up to 1920 x 1200 0 LVDS: dual channel 24-bit up to 1920 x 1200 0
DDI (HDMI/DVI/DisplayPort) Display port 1.2 supports up to 2560 x 1600 Display port 1.2 supports up to 2560 x 1600 Display port 1.2 supports up to 2560 x 1600 Display port 1.2 supports up to 2560 x 1600
Expansion Slots 1 x PCIex1, 2 x MiniPCIe 1 x PCIex1, 1 x MiniPCIe 1 x PCIex1, 2 x MiniPCIe 1 x PCIex1, 1 x MiniPCIe
