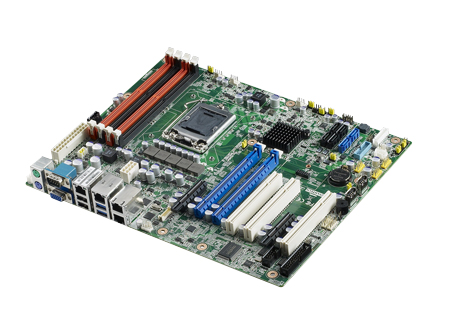

ASMB-782G2-00A1E |
ASMB-782G4-00A1E |
| Form Factor |
Form Factor |
ATX |
ATX |
| Processor System |
CPU |
Intel Xeon E3 1275v2 |
Intel Xeon E3 1275v2 |
| CPU TDP |
Up to 77 W |
Up to 77 W |
| Frequency |
Up to 3.5 GHz |
Up to 3.5 GHz |
| Core Number |
4 |
4 |
| L3 Cache |
8MB |
8MB |
| BIOS |
AMI EFI 64 Mbit |
AMI EFI 64 Mbit |
| Chipset |
Intel C216 |
Intel C216 |
| Integrated Graphics |
Yes |
Yes |
| DMI |
- |
- |
| QPI |
- |
- |
| Memory |
Technology |
DDR3 1600 MHz |
DDR3 1600 MHz |
| Capacity |
Up to 32 GB (8 GB per DIMM) |
Up to 32 GB (8 GB per DIMM) |
| ECC Support |
Yes |
Yes |
| Socket |
4 x 240-pin DIMM |
4 x 240-pin DIMM |
| REG Support |
- |
- |
| Display |
Controller |
Intel HD graphics Integrated |
Intel HD graphics Integrated |
| Graphic Memory |
Share system memory up to 1 GB with 2 GB and above memory installed |
Share system memory up to 1 GB with 2 GB and above memory installed |
| Multiple Display |
Dual |
Dual |
| Display Interface |
VGA: Up to 2048 x 1563 DVI-D: Up to 1920 x 1200 |
VGA: Up to 2048 x 1563 DVI-D: Up to 1920 x 1200 |
| Expansion Interface |
PCI Express x 16 |
- |
- |
| PCI Express x 8 |
2 |
2 |
| PCI Express x 4 |
2 |
2 |
| PCI Express x 1 |
- |
- |
| PCI |
3 |
3 |
| LPC |
1 |
1 |
| SMBus |
2 |
2 |
| PME |
- |
- |
| Ethernet |
Controller |
LAN1: Intel 82579LM LAN2: Intel 82574L |
LAN1: Intel 82579LM LAN2: Intel 82574L LAN3: Intel 82574L LAN4: Intel 82574L |
| Speed |
10/100/1000 Mbps |
10/100/1000 Mbps |
| Connector |
2 x RJ45 |
4 x RJ45 |
| WatchDog Timer |
Output |
System Reset |
System Reset |
| Interval |
Programmable 1~255 sec |
Programmable 1~255 sec |
| I/O |
SATA |
4 x SATA II (RAID 0, 1, 10) 2 x SATA III (RAID 0, 1, 10) |
4 x SATA II (RAID 0, 1, 10) 2 x SATA III (RAID 0, 1, 10) |
| SAS Port |
- |
- |
| SAS controller |
- |
- |
| USB3.0 |
2 |
2 |
| USB2.0 |
8 |
8 |
| GPIO |
8-bit |
8-bit |
| LPT |
1 |
1 |
| COM Port |
- |
- |
| PS/2 Keyboard/Mouse |
1 |
1 |
| SPDIF |
- |
- |
| System Fan |
4 |
4 |

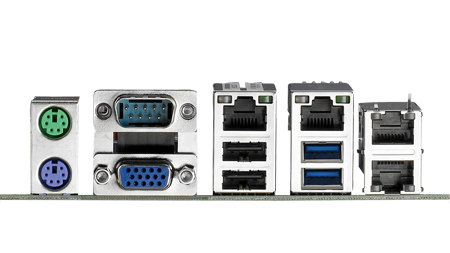

| Rear I/O Interface |
Display |
1 |
1 |
| LAN |
2/4 |
2/4 |
| USB3.0 |
2 |
2 |
| USB2.0 |
2 |
2 |
| COM |
1 x RS232 |
1 x RS232 |
| PS/2 |
2 (1 x Keyboard, 1 x Mouse) |
2 (1 x Keyboard, 1 x Mouse) |
| DVI |
- |
- |
| Ethernet |
2 |
4 |
| VGA |
1 |
1 |
| Power Requirement |
Voltage |
+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total |
+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total |
| Current |
66.47A/29.32A/20.48A/2.7A/-/-/1025.32W |
66.47A/29.32A/20.48A/2.7A/-/-/1025.32W |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-40~ 85° C and 60° C @ 95% RH Non-Condensing |
-40~ 85° C and 60° C @ 95% RH Non-Condensing |
| Non-Operating Vibration |
3.5 Grms |
3.5 Grms |
| Physical Characteristics |
Dimensions (LxW) |
304.8 x 244 mm (12" x 9.6") |
304.8 x 244 mm (12" x 9.6") |
| Weight |
0.8 kg (1.8 lb) |
0.8 kg (1.8 lb) |
| Certification |
EMC |
CE, FCC |
CE, FCC |
| Management Solution |
Software |
- |
- |
| Out of band remote management |
- |
-
|
