| AVS-540-00A1E |
| Form Factor |
Form Factor |
4U Rackmount |
| Processor System |
CPU |
Intl Xeon E5-2600 (Narrow LGA2011 socket) |
| CPU TDP |
Up to 95W |
| Frequency |
Up to 2.1G |
| Core Number |
8 / 6 Core |
| L3 Cache |
15 / 20 MB |
| BIOS |
AMI 64Mbit SPI (UEFI) |
| Chipset |
Intel C602J chipset |
| DMI |
20 GT/s |
| Memory |
Technology |
DDR3 1066MHz/1333MHz/1600MHz |
| Capacity |
Up to 96GB (16GB per DIMM) |
| ECC Support |
Yes |
| Socket |
6 x 240-pin DIMM |
| REG Support |
YES |
| Display |
Controller |
Aspeed AST2300 |
| Graphic Memory |
DDR3 64MB |
| Display Interface |
VGA: Up to 1920x1200@60Hz 32bpp |
| Expansion Interface |
PCI Express x 16 |
5 (Five Gen3 x8 link)(For Mura MPX installation) |
| PCI Express x 4 |
1 (Gen2 x4 link)(For Mura MPX-V8/V16 installation) |
| PCI Express x 1 |
- |
| PCI |
- |
| Ethernet |
Controller |
LAN1 : Intel I210 LAN2 : Intel 82579LM LAN3 : RealTek 8201EL-VB PHY(Connected to AST2300 for IPMI/iKVM only) |
| Speed |
10/100/1000 Mbps |
| Connector |
3 x RJ-45 |
| WatchDog Timer |
Output |
System Reset |
| Interval |
Programmable 1~255 sec |
| Front I/O Interface |
USB2.0 |
2 |
| PS/2 |
1 |

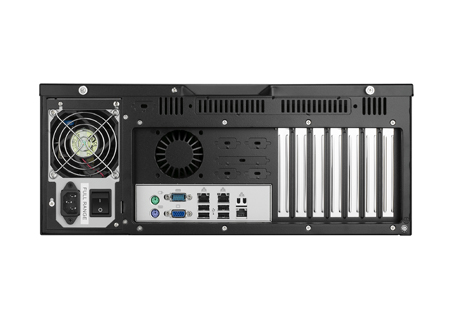

| Rear I/O Interface |
LAN |
3 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function) |
| USB2.0 |
4 |
| COM |
1 (DB9 UART) |
| PS/2 |
2 (1 x Keyboard, 1 x Mouse) |
| Ethernet |
2 |
| VGA |
1 |
| Power Supply |
Power Type |
ATX |
| Output Wattage |
Single Power : 700W |
| Input Range |
AC 100V~ 240V |
| Cooling |
System Fan |
2 (12cm / 114CFM each) |
| Air Filter |
Yes |
| Environment |
Operational Temperature |
0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing) |
| Non-Operational Temperature |
-20~ 60° C (-4~140° F) (40° C @ 95% RH Non-Condensing |
| Operating Vibration |
0.5 Grms |
| Non-Operating Vibration |
2 Grms |
| Operating Shock |
10 G |
| Non-Operating Shock |
30 G |
| Physical Characteristics |
Dimensions (W x H x D) |
482 x 177 x 479 mm (19" x 7" x 18.9") |
| Certification |
EMC |
CE, FCC |
| Safety Certifications |
UL, CB |
| Disk Drive Bay |
5.25" Front-Accessible |
3 |
| 3.25" Front-Accessible |
1 |
| 3.25" Hot-Swapable |
- |
| 3.5" Internal |
- |
| Miscellaneous |
LED Indicators |
Power, HDD, Temperature, FAN, and Power voltage Status |
| Control |
Power / System reset / Alarm reset switch |
| Management Solution |
Software |
SUSIAccess |
| Out of band remote management |
IPMI 2.0 |
