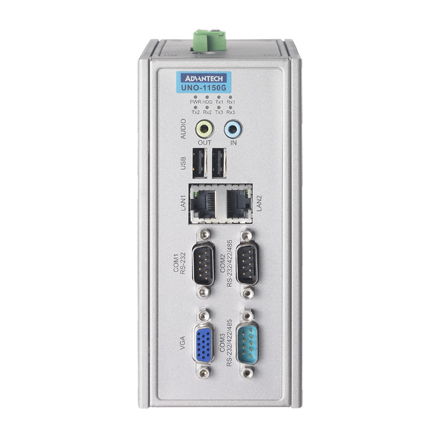

UNO-1150G
AMD Geode ™ LX800 DIN-rail PCswith 2 x LAN, 3 x COM

Main Features

  • Onboard AMD Geode LX800 500 MHz processor
  • Two RS-232 (one pin header reserved) and two RS-232/422/485 ports with automatic flow control
  • Two 10/100 Base-T RJ-45 ports
  • Two USB, audio and internal CompactFlash®
  • Compact size, small foot print, saves space and front accessible for easy wiring
  • DIN-rail design for easy installation in field cabinet
  • Wide operating temperature range
  • Windows® CE 6.0, Windows XP Embedded, and Linux ready solution
  • Onboard system & I/O LED indicators
  • Fanless desing with no intemal cabling
  • Isolation between chassis and power ground
        数据表(PDF)    技术资料下载

  规格表
UNO-1150G-G30E
General Power Consumption 15 W (Typical)
Mounting DIN-rail, Wallmount
Certifications CE, FCC class A, UL, CCC
Weight 1.6 kg
Dimensions 71 x 155 x 140 mm (2.8" x 6.1" x 5.6")
Enclosure Housing Aluminum + SECC
OS Support WES Windows XP Embedded, Windows 2000 & XP, Windows CE 5.0/6.0, Linux
Power Requirement 9 ~ 36 VDC (e.g +24 V @ 1 A) (Min. 24 W), AT
System Design Fanless with no internal cabling
Remote Management Built-in Advantech DiagAnywhere agent on Windows CE/XPe
System Hardware CPU AMD Geode LX 800 (500MHz)
Memory Onboard 256 MB DDR SDRAM
Storage SSD: 1 x internal type I/II CompactFlash slot, HDD: one 2.5" SATA HDD bracket
Keyboard/Mouse Ports 1 x PS/2
Audio Line in, Line out
Display DB15 VGA connector, supports up to 1024 x 768 @ 60 Hz
Processor System Watchdog Timer Programmable 256 levels timer interval, from 1 to 255 sec
System Hardware Indicators LEDs for Power, IDE, LAN (Active, Status) and Serial (Tx, Rx)
I/O Interface Serial Ports 2 x RS-232, 2 x RS-232/422/485 with DB9 connectors,Automatic RS-485 data flow control
LAN 2 x 10/100 Base-T RJ-45 ports
USB 2 x USB, OpenHCI, Rev. 1.1 compliant
Environment Temperature (Operating) -10 ~ 60° C (14 ~ 140° F)
Temperature (Storage) -20 ~ 80° C (-4 ~ 176° F)
Humidity (Operating) 95% @ 40° C (non-condensing)
