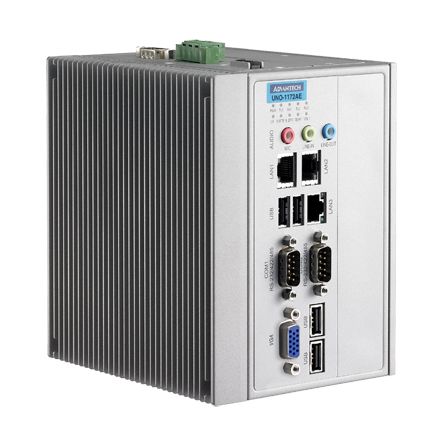

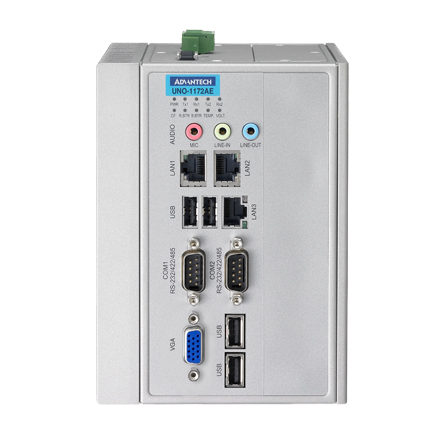

| UNO-1172AE |
| Intel® Atom™ D510 DIN-rail PCs with 3 x LAN, 2 x COM, VGA, Mini PCIe, PC/104+ |
| UNO-1172AE-A33E |
| General |
Power Consumption |
24 W (Typical) |
| Mounting |
DIN-rail, Wallmount |
| Certifications |
CE, FCC class A, UL, CCC |
| Weight |
2 kg |
| Dimensions |
111 x 152 x 139 mm (4.4" x 6" x 5.5") |
| Enclosure Housing |
Aluminum + SECC |
| OS Support |
Windows WES 2009, Windows XP, Windows 7, Windows CE 5.0/6.0, Linux, QNX |
| Power Requirement |
10 ~ 36 VDC (e.g +24 V @ 2 A) (Min. 48 W), AT |
| System Design |
Fanless with no internal cabling |
| Remote Management |
Built-in Advantech DiagAnywhere agent on Windows CE/XPe |
| System Hardware |
CPU |
Intel Atom D510 1.66 GHz |
| Memory |
2 GB DDR2 SDRAM built-in |
| Storage |
SSD: 1 x internal type I/II CompactFlash slot, HDD: one 2.5" SATA HDD bracket |
| Keyboard/Mouse Ports |
1 x PS/2 |
| Audio |
5.1 channel HD Audio, Mic in, Line in, Line out |
| Display |
DB15 VGA connector, 1600 x 1200 @ 85 Hz |
| Processor System |
Watchdog Timer |
Programmable 256 levels timer interval, from 1 to 255 sec |
| System Hardware |
Indicators |
LEDs for Power, IDE, LAN (Active, Status), Serial (Tx, Rx), Alarm for battery backup SRAM and diagnosis (programmable), Buzzer for Diagnosis (programmable) |
| Battery Backup Memory |
4 MB |
| PC/104 Slot |
one PC/104+ HDD |
| Mini PCI |
1 x Mini PCI |
| I/O Interface |
Serial Ports |
2 x RS-232/422/485 with DB9 connectors,Automatic RS-485 data flow control, 2 x RS-232(optional, pin header) |
| LAN |
3 x 10/100 Base-T RJ-45 ports (supports Wake on LAN, built-in boot ROM) |
| USB |
4 x USB, EHCI, Rev. 2.0 compliant (1 is for USB dongle inside chassis) |
| Environment |
Temperature (Operating) |
-10 ~ 65° C (14 ~ 149° F) |
| Temperature (Storage) |
-20 ~ 80° C (-4 ~ 176° F) |
| Humidity (Operating) |
20 ~ 95% (Non-condensing) |
| Ingress Protection |
IP40 |
| Humidity (Storage) |
0 ~ 95% (non-condensing) |
|
