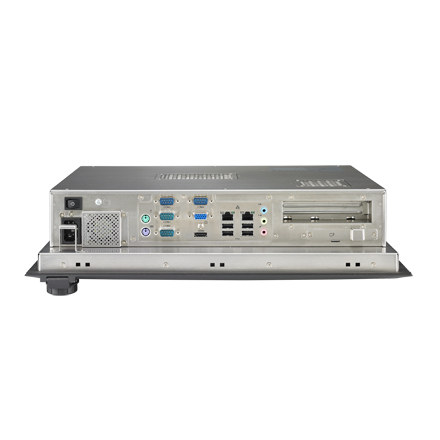

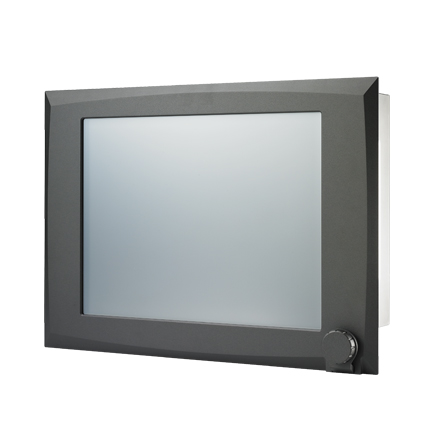

| IPPC-9151G |
| 15 XGA LED背光真彩液晶显示屏， 英特尔corei7/i5/i3赛扬移动处理器，1x PCIe插槽, 工业平板电脑 |
|
|
| Display |
Type |
VGA TFT LED Backlight LED |
| Viewing Angle (H/V°) |
160/140 |
| Backlight Life (hrs) |
50,000 hrs |
| Luminance (cd/m2) |
350 |
| Size |
15" |
| Max. Resolution |
1024 x 768 |
| Max. Colors |
16.2M or 256K Color |
| Contrast Ratio |
700:01:00 |
| General |
Power Input |
100~240 VAC @ 4A 50~60hz |
| Mounting |
Panel, rack |
| Certifications |
BSMI, CCC, CE, FCC, UL |
| Dimensions |
428 x 310 x 96.5 mm (16.35" x 12.2" x 3.79") |
| BIOS |
AMI EFI 64 Mbit SPI |
| Cooling System |
2 x 10.1 CFM fans w/50,000 hrs MTBF |
| Enclosure Housing |
Stainless steel back case, 10 mm aluminum front panel |
| Disk Drive Bay |
Supports 1 x 2.5" SATA II or SATA III HDD |
| Weight (Gross) |
10.52 Kg (23.19 lbs) |
| Power Supply |
180 W |
| System Hardware |
CPU |
Supports uFC-PGA988 Intel mobile Core i7-2710QE 2.1 GHz / Core i5-2510E 2.5 GHz / Core i3-2330E 2.2 GHz / Celeron B810 1. 6GHz processor |
| Memory |
2 x 204 pin DDR3 1066/1333 SODIMM sockets, supports up to 8GB(2x 4GB), 1 x CFast slot |
| Chipset |
Intel 6 series chipset(QM67) |
| LAN |
2 x10/100/1000Mbps |
| Expansion Slots |
Supports 1 x PCIe x1 or x4 (PCI optional) |
| Audio Ports |
Mic-in,Line-out,Line-in |
| I/O |
1 x VGA, 1 x HDMI, 5 x USB 2.0( one at front), 4 xRS-232 |
| Environment |
Temperature (Operating) |
0 ~ 50° C (32 ~ 122° F) |
| Temperature (Storage) |
-20 ~ 60° C (-4 ~ 140° F) |
| Humidity (Operating) |
5 ~ 85% @ 40°C (non-condensing) |
| Ingress Protection |
Front panel: IP65 |
| Vibration Protection |
5 ~ 500 Hz, 1 GRMS random vibration |
| Touchscreen |
Lifespan |
36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s |
| Light Transmission |
> 80% |
| Touch Type |
5-wire, analog resistive |
| OS Support |
Windows 7, Windows8, Windowx XP |
|
数据表(PDF)
