| General |
Certifications |
BSMI, CCC, CE, FCC Class A, UL |
| Cooling System |
Fanless design |
| Dimensions |
488 x 309 x 65mm (19.2" x 21.2" x 2.6") |
| Enclosure Housing |
Front bezel: Die-cast Aluminium alloy Back housing: Die-cast Aluminium alloy |
| OS Support |
Microsoft® Win8/WES7P/XP/WES2009/Linux |
| Mounting |
VESA Arm |
| Power Consumption |
35 W (typical) |
| Power Input |
24 VDC |
| Weight (Net) |
8 kg (17.64 lbs) |
| LCD Display |
Backlight Life |
50,000 hrs |
| Display |
Size |
18.5" |
| LCD Display |
Display Type |
WXGA TFT LED LCD |
| Luminance (cd/m2) |
300 |
| Max. Colors |
16.7M |
| Max. Resolution |
1366 x 768 |
| Viewing Angle (H/V°) |
170/160 |
| System Hardware |
Chipset |
AMD A50M FCH |
| CPU |
AMD G-series T56E 1.65GHz |
| Expansion Slots |
Full-sized Mini PCI-E x 1 (optional) |

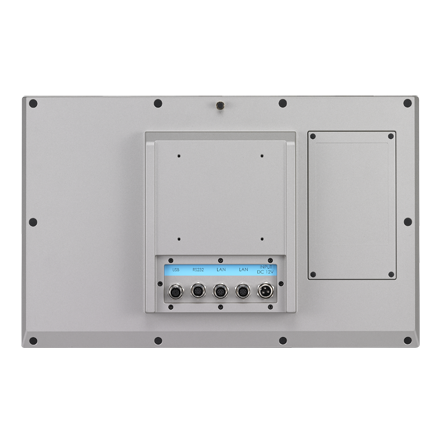

| I/O |
RS-232 x1 (connection:M12 A-coding, 8-pin male)，USB 2.0 x1 (connection:M12 A-coding, 8-pin female), 24 VDC power input (connection:M12 A-coding, 5-pin male) |
| LAN |
10/100/1000Base-T x 2 (connection:M12 A-coding, 8-pin female) |
| Memory |
4GB SO-DIMM DDR3 SDRAM |
| Storage |
2.5" SATA HDD |
| Touchscreen |
Touch Type |
Projected capacitive |
| Light Transmission |
≥88% |
| Resolution |
4096 x 4096 dot |
| Environment |
Ingress Protection |
All around IP65 |
| Temperature (Operating) |
0 ~ 55°C (32 ~ 131°F) |
| Humidity (Operating) |
10 ~ 95% RH @ 40°C, non-condensing (Note: Tested for 48hrs) |
| Temperature (Storage) |
-20 ~ 60°C (-4 ~ 140°F) |
| Vibration Protection |
With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
