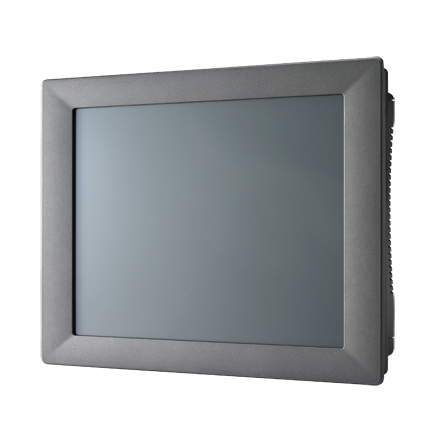

| TPC-1271H-D3AE |
| Display |
Type |
SVGA TFT LED LCD |
| Viewing Angle (H/V°) |
160/140 |
| Backlight Life (hrs) |
50,000 hrs |
| Luminance (cd/m2) |
450 |
| Size |
12.1" |
| Max. Resolution |
800 x 600 |
| Max. Colors |
262 K |
| Contrast Ratio |
700:01:00 |
| General |
Power Consumption |
20 W (typical) |
| Power Input |
10~29 VDC |
| Watchdog Timer |
1 ~ 255 sec (system) |
| Mounting |
Desktop, Wall or Panel Mount |
| Certifications |
BSMI, CCC, CE, FCC Class A, UL |
| Dimensions |
311 x 237 x 73.1 mm (12.24" x 9.33" x 2.88") |
| BIOS |
AMI 8Mbit |
| Cooling System |
Fanless design |
| Enclosure Housing |
Front bezel: Die-cast Aluminum alloy, Back housing: PC/ABS Resin |
| OS Support |
Microsoft® Windows® 7/XPE/WES/Windows CE 6.0 |
| Weight (Net) |
4.57 kg (10.07 lbs) |
| System Hardware |
CPU |
Intel® Atom™ D525 1.8 GHz with 1MB cache |
| Memory |
4GB SO-DIMM DDR3 SDRAM |
| Storage |
CompactFlash® slot x 1, 2.5" SATA HDD x 1(optional) |
| Chipset |
ICH8M |
| LAN |
10/100/1000Base-T x 2 |
| I/O |
RS-232 x 2 with isolation, RS-422/485 x 1 with isolation and auto data flow control, USB 2.0 x 2 (Host), PS/2 x 1 |
| Expansion Slots |
Half-size PCI-E or full-size Mini PCI-E |
| DI/DO & Backup SRAM |
8 x DI/DO with isolation and backup 1MB SRAM |
| Environment |
Temperature (Operating) |
0 ~ 55°C (32 ~ 131°F) |
| Temperature (Storage) |
-20 ~ 60° C (-4 ~ 140° F) |
| Humidity (Operating) |
10 ~ 95% RH @ 40° C, non-condensing |
| Ingress Protection |
Front panel: IP65 |
| Vibration Protection |
With HDD: 1 Grms (5 ~ 500 Hz) |
| Touchscreen |
Lifespan |
10 million touches at single point |
| Light Transmission |
Above 75% |
| Resolution |
Linearity |
| Touch Type |
5-wire, analog resistive |
