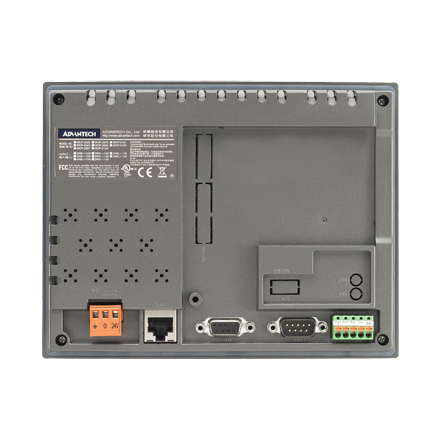

WebOP-2057V |
5.7" QVGA工业级可编程人机界面,支持研华WebOP Designer 2.0组态软件 |
|
|
WOP-2057V-S1AE |
Display |
Size |
5.7" |
5.7" |
Max. Resolution |
320 x 240 |
320 x 240 |
General |
Power Consumption |
15 W |
15 W |
Power Input |
24VDC ±10% |
24VDC ±10% |
Mounting |
Panel |
Panel |
Certifications |
CE, BSMI, CCC, UL, FCC Class A |
CE, BSMI, CCC, UL, FCC Class A |
Dimensions |
187 x 145.7 x 45 mm (7.36" x 5.73" x 1.77") |
187 x 145.7 x 45 mm (7.36" x 5.73" x 1.77") |
Cooling System |
Fanless design |
Fanless design |
Enclosure Housing |
PC/ABS |
PC/ABS |
OS Support |
HMI RTOS, WebOP Designer |
HMI RTOS, WebOP Designer |
Weight (Net) |
0.65 kg (1.42 lbs) |
0.65 kg (1.42 lbs) |
System Hardware |
CPU |
RISC 32 bits, 70MHz |
RISC 32 bits, 70MHz |
Memory |
2 MB SDRAM |
1 MB SDRAM |
Storage |
4MB NOR Flash |
4MB NOR Flash |
I/O |
COM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) |
COM1: RS232/422/485 (DB9 Femail) COM2: RS422/485 (Terminal 5pin) |
LAN |
10/100Base-T x 1 |
|
Battery Backup Memory |
128KB |
128KB |
LCD Display |
Viewing Angle (H/V°) |
100/95 |
100/95 |
Luminance (cd/m2) |
400 |
400 |
Backlight Life |
LED, 20,000 |
LED, 20,000 |
Max. Colors |
256 colors |
256 colors |
Display Type |
QVGA TFT LCD |
QVGA TFT LCD |
Environment |
Temperature (Operating) |
0 ~ 50°C (32 ~ 122° F) |
0 ~ 50°C (32 ~ 122° F) |
Temperature (Storage) |
-20 ~ 60°C (-4 ~ 140° F) |
-20 ~ 60°C (-4 ~ 140° F) |
Humidity (Operating) |
10 ~ 95% RH @ 40° C, non-condensing |
10 ~ 95% RH @ 40° C, non-condensing |
Ingress Protection |
Front panel: IP65 |
Front panel: IP65 |
Vibration Protection |
1 Grms (5 ~ 500 Hz) |
1 Grms (5 ~ 500 Hz) |
Touchscreen |
Lifespan |
1 million times with an 8mm diameter finger of silicone rubber |
1 million times with an 8mm diameter finger of silicone rubber |
Resolution |
Linearity |
Linearity |
Touch Type |
4-wire, analog resistive |
4-wire, analog resistive |
|
