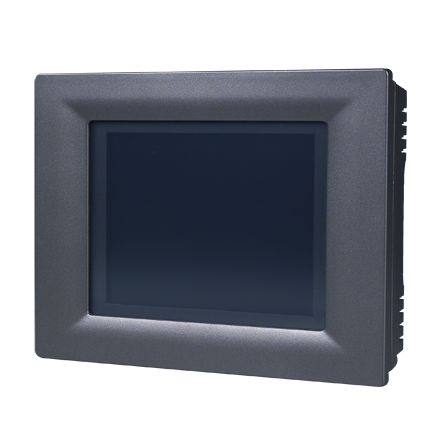

| TPC-61T |
| [WinCE] 5.7" QVGA TFT LED LCD TI Cortex-A8 Touch Panel Computer |
| TPC-61T-E3AE |
| Display |
Size |
5.7" |
| Max. Resolution |
320 x 240 |
| General |
Power Consumption |
8 W (typical) |
| Power Input |
18 ~ 32 VDC |
| Mounting |
Panel |
| Certifications |
CE, BSMI, UL, FCC Class A |
| Dimensions |
195 x 148 x 44.4 mm (7.68" x 5.83" x 1.75") |
| Cooling System |
Fanless design |
| Enclosure Housing |
ABS |
| OS Support |
Windows CE 6.0 (English Version) |
| Weight (Net) |
0.8 kg (1.76 lb) |
| System Hardware |
CPU |
TI AM3517 |
| Memory |
256MB DDR2 |
| Storage |
512MB on board micro SD card, 1 x SD Card slot |
| LAN |
10/100Base-T x 1 |
| I/O |
RS-232 x 2 (COM1,2) RS-422/RS-485 x 1 (COM 3) with auto data flow control, USB2.0 (Host) x 1, USB2.0 (Client) x 1 |
| Battery Backup Memory |
128KB FRAM |
| LCD Display |
Viewing Angle (H/V°) |
120/110 |
| Luminance (cd/m2) |
800 |
| Backlight Life |
LED, 50,000 |
| Max. Colors |
65,536 colors |
| Display Type |
QVGA TFT LCD |
| Environment |
Temperature (Operating) |
0 ~ 50°C (32 ~ 122° F) |
| Temperature (Storage) |
-20 ~ 60°C (-4 ~ 140° F) |
| Humidity (Operating) |
10 ~ 95% RH @ 40° C, non-condensing |
| Ingress Protection |
Front panel: NEMA4, IP65 |
| Vibration Protection |
1 Grms (5 ~ 500 Hz) |
| Touchscreen |
Lifespan |
1 million times with an 8mm diameter finger of silicone rubber |
| Resolution |
Linearity |
| Touch Type |
4-wire, analog resistive |
|
