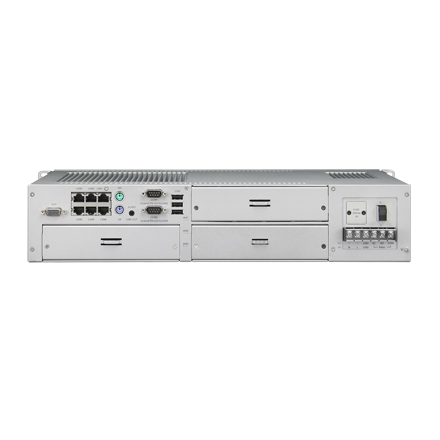

| General |
Power Consumption |
45W (Typical) |
| Mounting |
2U Rackmount |
| Certifications |
IEC 61850-3, IEEE 1613,CE,FCC Class A,UL,CCC, Electricity IV level for China |
| Weight |
~6.0 kg |
| Dimensions |
440 x 280 x 88 mm (17.3" x 11" x 3.4") |
| Enclosure Housing |
SECC + Aluminum |
| OS Support |
WES7, WES2009, Linux, Win7 |
| Power Requirement |
AC : 100 ~ 240 VAC (47 ~ 63 Hz), DC : 106 ~ 250 VDC |
| System Design |
Fanless |
| Remote Management |
Built-in Advantech DiagAnywhere agent on Windows CE/XPe |
| System Hardware |
CPU |
Intel Core i7 2.0 GHz |
| Memory |
4GB DDR3 |
| Storage |
1×internal typeI/II CompactFlash® slot,1×Built-in 2.5" SATA HDD bracket |
| Keyboard/Mouse Ports |
2 x PS/2 |
| Display |
DVI-I,1920×1080 @ 60HZ |
| Indicators |
LEDs for power, Alarm for battery backup SRAM,Diagnosis (programmable), LAN(Active, Status) and Serial(Tx, Rx) |
| Battery Backup Memory |
1 MB |
| Reset Button |
Yes |
| Processor System |
Watchdog Timer |
programmable 7-tier event handler, from 1 to 255 sec |
| Protection |
Isolation Protection |
2500VDC |
| I/O Interface |
Serial Ports |
2 Ports,2 × RS-232/422/485 (Automatic RS-485data flow control) |
| USB |
6 x USB (include 1×internal USB), UHCI, Rev. 2.0 compliant |
| LAN |
2 x 10/100/1000Base-T RJ-45 ports with teaming function 4 x 10/100Base-T RJ-45 ports |
| Audio |
Line-out |
| Communication Speed |
RS-232: 50 ~115.2kbps,RS-422/485: 50 ~ 921.6kbps (Max.) |
| Extension |
3× Domain I/O Expansion (only slot 1 supports PCIe) |
| Environment |
Temperature (Operating) |
IEC 60068-2-2 with 100% CPU/ I/O loading, 48 hrs,-20~70° C (-4~158°F) |
| Humidity (Operating) |
20 ~ 95% (Non-condensing) |
| Vibration Protection |
IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) HDD: 1 Grms @ 5 ~ 500 Hz |
| Shock Protection |
HDD: 1.0G half sine,11ms |
