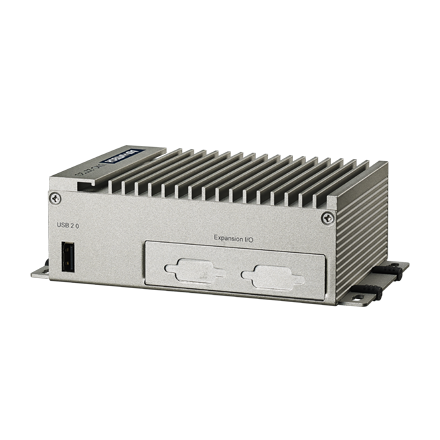

| UNO-2272G |
| Intel® Atom™ Palm-Size Automation Computer with 1 x GbE, 2 x mPCIe, VGA |
|
|
| Environment |
Ingress Protection |
IP40 |
| Vibration Protection |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) |
| Operating Temperature |
-20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
| Relative Humidity |
10 ~ 95% RH @ 40°C, non-condensing |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Storage Temperature |
-40 ~ 85°C (-40 ~ 185°F) |
| I/O Interface |
Audio |
Line-out |
| Displays |
1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 3200x2000@60Hz 24bpp |
| Grounding Protection |
Chassis Grounding |
| LAN Ports |
1 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
| Power Connector |
1x 2 Pins, Terminal Block |
| Serial Ports |
1 x RS-232, DB9, 50~115.2kbps |
| USB Port |
3 x USB 2.0 Ports |
| System Hardware |
Ethernet |
Intel® 82583V GbE, 802.1Qav, IEEE1588/802.1AS, |
| Expansion |
1 x Full-Size, 1 x Half-Size mPCIe Slot, PCIe 2.0 |
| Graphics Engine |
Intel® HD Graphics |
| LED Indicators |
LEDs for Power, LAN(Active,Status) |
| Memory |
Built-in 2GB DDR3 1600 MHz |
| Processor |
Intel Atom Dual Core N2800 1.86GHz |
| Storage |
1 x mSATA |
| System Chip |
Intel Atom SoC integrated |
| Watchdog Timer |
Programmable 6 levels timer interval, from 15 to 255 sec |
| General |
Certifications |
CE, FCC, UL, CCC, BSMI |
| Dimensions ( W x D x H ) |
157 x 88 x 50mm (6.2"x 3.5"x 2.0") |
| Enclosure |
Aluminum Housing |
| Form factor |
Palm Size |
| Mounting |
Stand, Wall, VESA (Optional) |
| OS Support |
Microsoft® Windows 7/8 WES7, WES-2009, Linux Fedora |
| Power Consumption |
8W (Typical), 12W (Max) |
| Power Requirement |
24VDC ± 20% |
| Weight (Net) |
0.8 kg (1.76 lb) |
| System Hardware |
BIOS |
AMI EFI64 Mbit |
|
